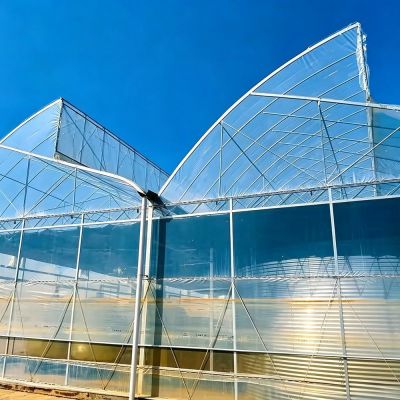

A film greenhouse kit built on a hot-dip galvanized steel pipe frame with an arch roof, covered by polyethylene film held with aluminium clips. Spans of 6.4, 8, 9.6 or 10 metres are available, with a total structure height of 4.3 to 6.5 metres. Covering film is 0.12 mm or 0.15 mm. Optional cooling, heating, irrigation, ventilation, fertilization, shading and bench systems can be fitted before delivery. Suited to vegetable, fruit and flower production in all climate conditions and on any type of landscape.
A film greenhouse kit is the fastest way to put a productive growing structure on your land. This kit is built on a hot-dip galvanized steel pipe frame with an arch roof, covered with polyethylene film held by aluminium clips. Because the frame arrives cut and drilled, assembly is straightforward and the house can be erected on almost any plot, including uneven or irregular ground.
The main structure is hot-dip galvanized steel pipe, assembled with bolts and standard fittings, and needs no welding on site. The arch roof sheds rain and snow well and gives a uniform growing environment. Polyethylene film is fixed with aluminium clips along the arch and along the side walls, and side-wall openings take insect nets and roll-up curtains, operated manually or electrically.
Standard spans are 6.4, 8, 9.6 and 10 metres, with a total structure height of 4.3 to 6.5 metres. Covering film thickness is 0.12 mm or 0.15 mm, and the film can be fitted as a single layer or as a double inflated layer for extra insulation. The frame is designed to be covered by polyethylene film only.
The kit can be supplied as a frame-and-cover package or as a complete growing system. Optional equipment includes cooling and heating systems, irrigation, ventilation, fertilization, shading and benches, fitted according to your crop and local climate.
The house suits vegetable production, fruit growing and cut flowers, and works in all climate conditions. Growers who need a taller or wider structure can compare our agricultural tunnel greenhouse, and film-only builds are covered in the tunnel plastic greenhouse range. For protected-cropping practice, FAO publishes guidance on sustainable horticulture, and Greenhouse Grower covers commercial production in depth.
Standard spans are 6.4, 8, 9.6 and 10 metres with a total height of 4.3 to 6.5 metres. Film is supplied at 0.12 mm or 0.15 mm, as a single layer or as a double inflated layer. Tell us your crop and climate and we will recommend the combination.
Yes. Cooling and heating systems, irrigation, ventilation, fertilization, shading and benches can all be fitted before delivery, depending on your request. The side walls already take insect nets and roll-up curtains for natural ventilation.
The hot-dip galvanized steel frame is designed for a 15-20 year service life in normal agricultural environments, with a double-sided zinc coating of 200-275 g/m². Film covers are replaced every 3-5 years, while glass and PC panels carry their own manufacturer warranties.
The hot-dip galvanized steel frame carries a 10-year structural warranty covering structural safety, plus a 5-year warranty against corrosion perforation. It is designed for a 15-20 year service life. Film covers carry a 3-5 year UV warranty depending on grade.
Send your growing area, span and length, crop type and local climate. If you already have a layout drawing, that is enough to start. Our engineers then return a quotation with a structure drawing and a bill of materials.
